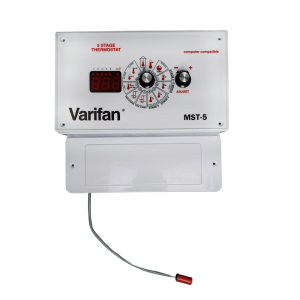

MST-5 Digital multi-stage thermostat

Catégories: Controllers and expansion modules, Poultry, Controller and expansion modules, Controllers and expansion modules, Controllers and expansion modules, Swine, Dairy, Horticultural, Heating/Thermostats, Heating/Thermostats, Heating/Thermostats, Heating/Thermostats, Other Controllers, Other Controllers, Other Controllers, Other Controllers

The MST product line provides you with full control over temperature by heating or cooling, resulting in a comfortable environment for your livestock.

The MST-5 provides the next features:

  • Compatible with 2 speed motors
  • Hi / Lo temperature recall
  • Timer on first stage non-active above the set point
  • Timer for drip cool unit
  • Automatic temperature ramping
  • Adjustable differential for cooling and heating stages

Temperature sensor 2004-1k included


Digital multi-stage (5) thermostat, VARIFAN, 5 stages.

Clear

Technical specifications

The MST-5 provides microprocessor control over a five-stage output.

  • The first stage controls a single speed fan or the first speed of a 2-speed motor.
  • The stage also includes a programmable duty cycle and adjustable timer setting.
  • The second stage provides control over a second single speed fan or the second speed of a 2-speed fan.
  • The third stage provides control over a third fan or the first speed of a 2-speed fan.
  • The third stage can be used for a drip cool unit with an adjustable timer setting.
  • The fourth stage controls a heater for cooler climates or a fourth single speed fan or the second speed of a double speed fan.
  • The fifth stage controls another heater for colder climates or another single speed fan.
  • The MST-5 provides you with full control over all five stages via the use of an easy-to-follow display panels.

All programmable features can be customized to meet your requirements.

The MST-5 keeps you constantly informed by displaying the status of all of its outputs as well as the ambient temperature.

Safety of livestock is ensured by the continuous control of climate and timely alarm notification should environmental conditions exceed alarm set points.

The MST-5 provides a constant automatic temperature reduction (ramping) features for your maturing livestock.

A built-in low temperature safety factor prevents temperatures from reaching dangerous limits.

With MST-5 controlling of your climate, you are assured of optimal living conditions for your livestock.

  • 240 V
