DIP-1/V Actuator module with potentiometer – DIP-1/V

Catégories: Actuators (Cylinders), Actuators (Cylinder), Controllers and expansion modules, Controllers and expansion modules, Actuators (Cylinders), Actuators (Cylinder), Poultry, Controllers and expansion modules, Controller and expansion modules, Swine, Dairy, Horticultural, Ventilation, Ventilation, Air Inlets, Air inlets, Ventilation, Air Inlets, Ventilation, Air Inlets

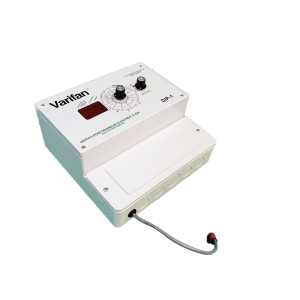

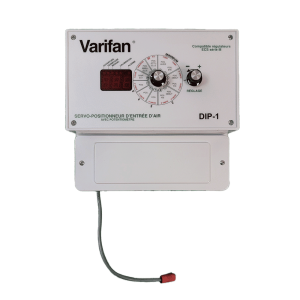

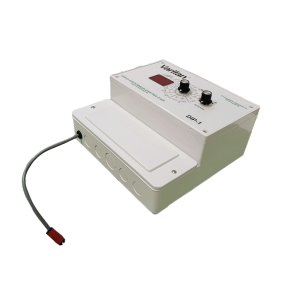

Servo-positioner for actuator with potentiometere – DIP-1/V

  • 110 VDC or 24 VDC power potentiometer (115 VAC) 50/60Hz
  • 1 exterior probe 2004-1KLT included

Curtain controller

See new generation DIP-1C


Air inlet positioner with potentiometer

Clear

Technical specifications

The DIP-1/V is specially designed to position a curtain or air inlet for actuators with VAC potentiometer feedback.

The DIP-1/V provides a full air inlet control.

The DIP-1/V offers the following features:

  • Compatible with 1 or 2 controls of the ECS-M series
  • Automatic detection of the ventilation stage

This control allows a minimum positioning or selection for summer and winter, to avoid abrupt temperature changes.

The air inlet automatically gets positioned when a ventilation stage (on the ECS-M) is activated, the air inlet gets proportional positioned between the start and the end position when the stage is variable.

If the stage is controlled by a relay (single speed stage), the air inlet gets positioned by stage.

The DIP-1/V memorizes the highest percentage and positions the air inlet at its position.

The DIP-1/V provides you with full control over the air inlet by using an easy to follow display panel.

All programmable features can be customized to meet your requirements.

The DIP-1/V keeps you constantly informed by displaying the status of the air inlet as well as the actual position.



Veuillez sélectionner 1 option de variation du produit afin d'afficher les caractéristiques techniques

  • 240 V
