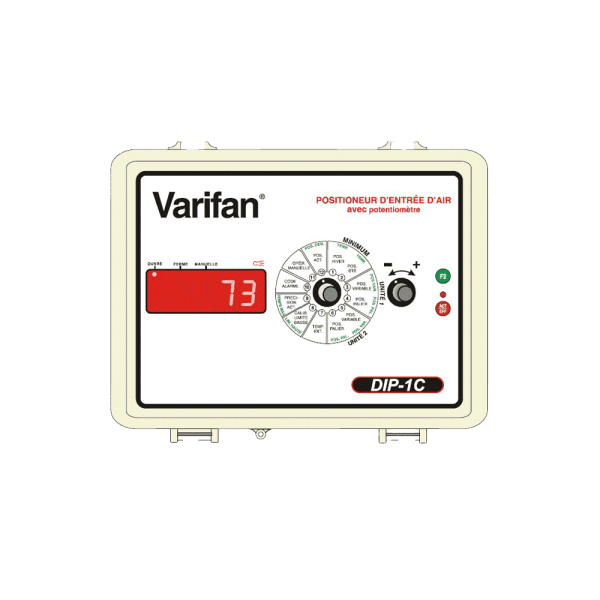

DIP-1C Actuator module with potentiometer DIP-1C

Catégories: Controllers and expansion modules, Controller and expansion modules, Actuators (Cylinders), Actuators (Cylinder), Controllers and expansion modules, Controllers and expansion modules, Actuators (Cylinders), Actuators (Cylinder), Poultry, Swine, Dairy, Horticultural, Ventilation, Ventilation, Air Inlets, Air inlets, Ventilation, Air Inlets, Ventilation, Air Inlets

This control allows a minimum positioning or selection for summer and winter, to avoid abrupt temperature changes.

  • Compatible with 1 or 2 controls of the MD series.
  • Automatic detection of the ventilation stage.
  • 110 VDC power potentiometer (115 VAC) 50/60Hz.
  • 1 exterior probe 2004-1KLT included.

Latest generation of DIP/V110 and DIP-1/V24 models


Servo-positioner for actuator with potentiometer

Technical specifications

  • SKU: DIP-1C

Le DIP-1C permet de contrôler une entrée d’air selon l’information reçue par un ou deux régulateurs.

L’entrée d’air ouvre progressivement selon le niveau de ventilation.

Certaines positions peuvent être influencées par la température extérieure.

Lorsque le potentiomètre de l’actuateur est défectueux, une alarme surviendra.
