Aluminium motorized shutter
Aluminium motorized shutter
Aluminium motorized shutter
Aluminium motorized shutter
Aluminium motorized shutter
Aluminium motorized shutter
Aluminium motorized shutter

V56-66XX Aluminium motorized shutter

Catégories: Dairy, Poultry, Shutters, Shutters, Shutters, Swine, Ventilation, Ventilation, Ventilation

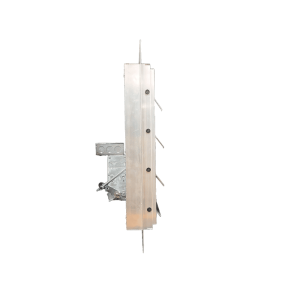

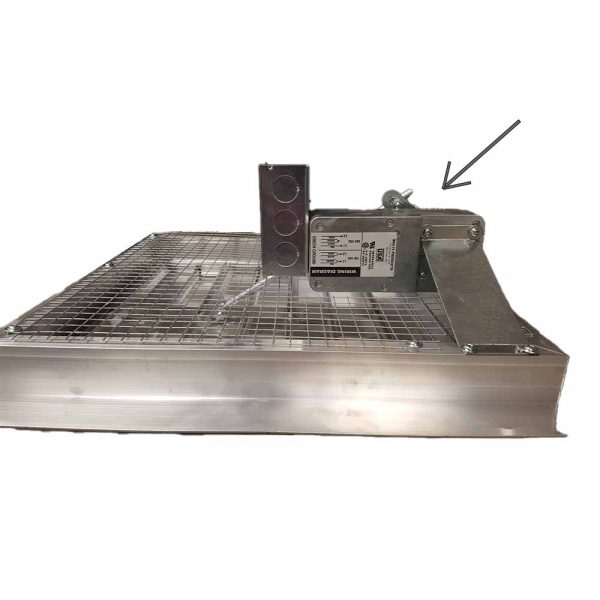

Motorized aluminum shutter with grid for wall ventilation.

Motor 115/230V

Several sizes available:

  • 16″ – 1 motor
  • 24″ – 1 motor
  • 36″ – 1 motor
  • 48″ – 2 motors
  • 60″ – 2 motors

Motorized Damper

Clear
Add to quote
SKU: V56-66XX Categories: , , , , , , , ,

Technical specifications

STANDARD CONSTRUCTION

  • Screen included
  • Depth Blades Closed: 2 3/4″ (70 mm)
  • Depth Blades Open: 5 5/8″ (143 mm)
  • Specify “FFM” For Front Flange Frame
  • Frame Thickness: 0.062″ 6063-T5 Extruded Aluminium
  • Blade Thickness: 0.062″ 6063-T5 Extruded Aluminium
  • Blade Centres: 3 3/4 Inches (95 mm)
  • Minimum Height: 8 Inches (203 mm)
  • Maximum Panel Width: Single panel 40” (1016 mm)
  • Double Panel 60” (1524 mm)
  • Standard Finish: Mill
  • Standard Birdscreen: ½” x ½” Galvanized
  • Standard Seals: Vinyl Blade Seal

Veuillez sélectionner 1 option de variation du produit afin d'afficher les caractéristiques techniques

  • 240 V
