CM3/10 ON/OFF module, 2 outputs

Catégories: Controllers and expansion modules, Poultry, Controller and expansion modules, Controllers and expansion modules, Swine, Horticultural, Manual Ventilation, Manual Ventilation, Manual Ventilation, Other Controllers, Other Controllers, Other Controllers

Modules designed to drive two small or large diameter fans.

Up to 1.5 HP under the control of an IC type controller that would result in a fresh air environment for your livestock.


2-output module

Clear

Technical specifications

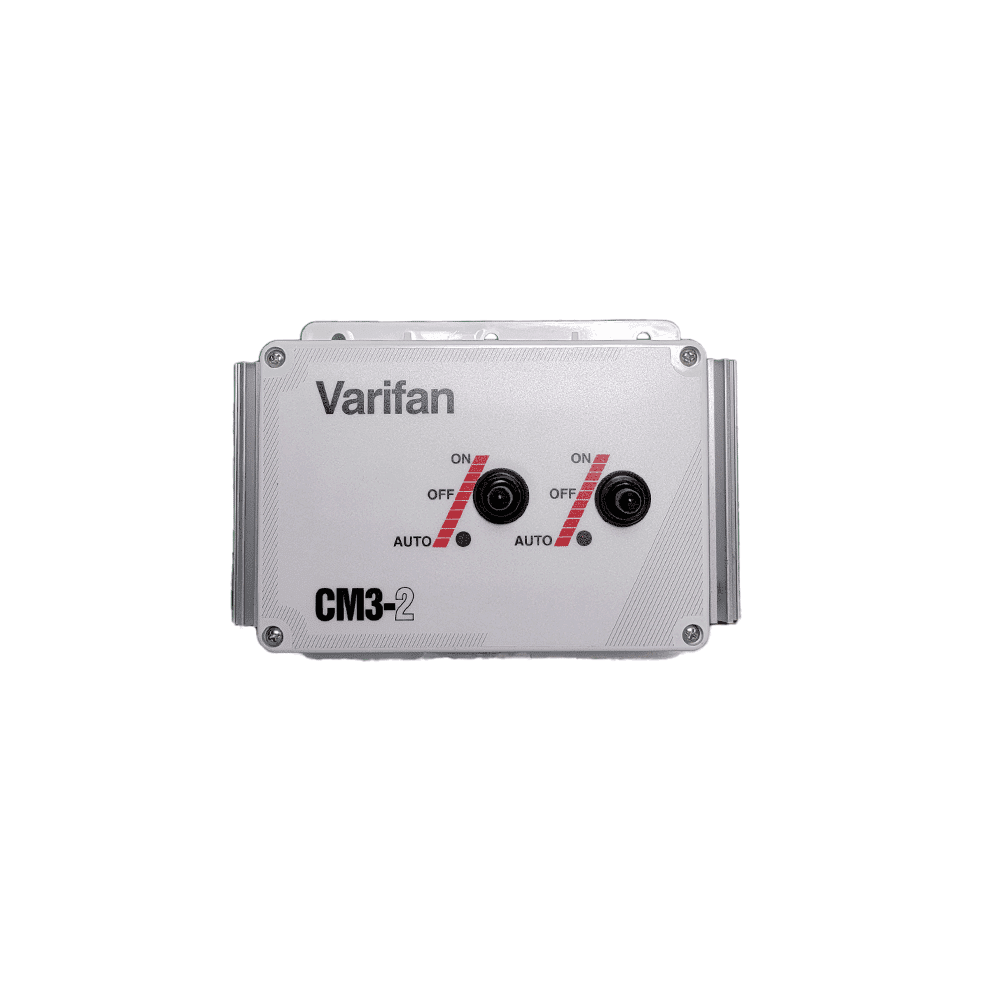

The CM3-2 is designed to drive two small diameter fans or small loads of up to 1 HP (horsepower) under the control of a MSC or an IC control system resulting in a clean air environment for your livestock.

  • Small loads driving less than 0.1A such as relays; heater coils; sprinkler valves may be connected to the CM3-2
  • The CM3-2 provides you with automated control over its two stages via the use of the MSC, the IC or alternatively by manual switch control on the CM3-2 front panel.
  • Under MSC or IC control, the CM3-2 keeps you constantly informed of its two stages via LED indications.
  • The current draw of the load should be in the range of 0.002A to 4A.

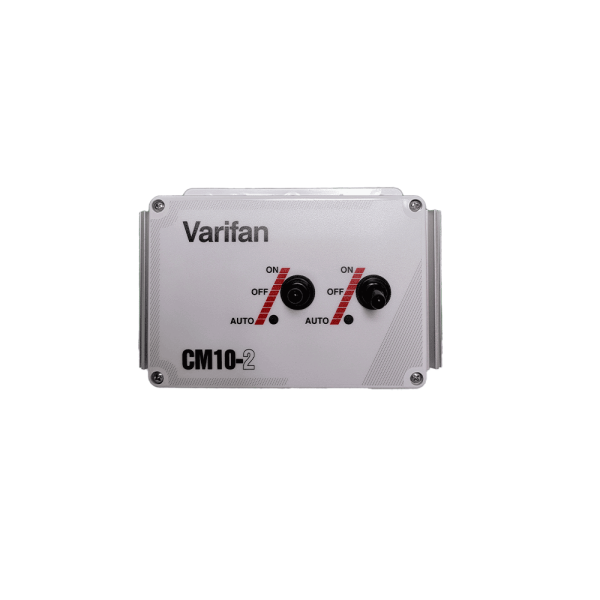

The CM10-2 is designed to drive two small diameter fans or small loads of up to 1.5 HP (horsepower) under the control of a MSC or an IC control system resulting in a clean air environment for your livestock.

  • Small loads driving less than 0.1A such as relays; heater coils; sprinkler valves may be connected to the CM10-2.
  • The CM10-2 provides you with automated control over its two stages via the use of the MSC, the IC or alternatively by manual switch control on the CM10-2 front panel.
  • Under MSC or IC control, the CM10-2 keeps you constantly informed of its two stages via LED indications.
  • The current draw of the load should be in the range of 0.1A to 10A
  • 240 V
